Installation Video: https://www.youtube.com/watch?v=QCROReyPpj0

Jeacent Adjustable Window Air Conditioner Support Bracket [Registered Pattern]

·  No drilling needed, this bracket can be quickly and easily removed and re-installed. That's a big advantage if you plan to store your AC indoors during the cooler months, or if you expect to move with some frequency (renters, take note).

· The Jeacent ac bracket can support up to 200 pounds. That’s far more than most residential air conditioners up to 12,000 Btu weigh, Solid epoxy-coated thick steel plate ensure many years of enjoyment.

Features

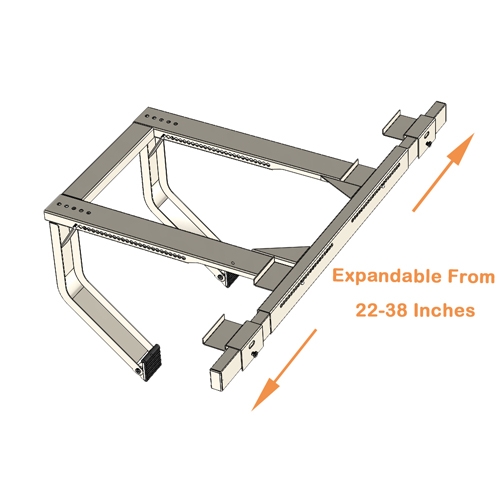

· Adapts to Most Windows - Adjustable for different window widths, It can accommodate single or double hung windows (the standard, slip up-and-down kind) from 22-38 inches wide

· Full Rubber Pad - Full-rubber mounts design can be better fit the siding wall and make the bracket stable and firm.No damage to outside wall

· Precise Adjustment - Adjustable depth bracket,four holes can adjust the angle more precisely, making the bracket more stable and safe

· High-density Material - Solid epoxy-coated thick steel plate prevent rust and rot, matte surface prevent the A/C to drop out of the window

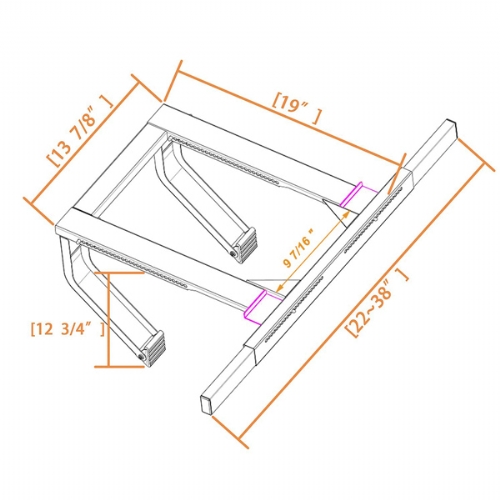

Specifications

· Color: off white

· Support up to 200lbs

· Unit weight: 9.48 pounds

· Fits air conditioner with a minimum width 9 7/16"

· 19 " length A/C resting surface

· The support holds up to 200 pounds

Window & Wall

· Fits 1" width window track

· Adapts to single or double hung windows

· Fits windows with a minimum width opening of 22" and a maximum width opening of 38"

· Cannot be used with slider, crank out or casement windows

· Fit wall thickness from 4" to 11"

How to Install

· Slide support leg into support rail and lock the support legs in desired position.

· Insert the included Square Tube into each side of the Tube Rail while pressing both spring buttons. Release buttons at the desired length.

· Place the bracket in window and adjust each sill Square Tube until it is positioned securely inside the window frame.

· Adjust the legs until the H-frame is tilted very slightly downward. Be sure the support foot pads are resting on the exterior. Place air conditioner on the bracket
